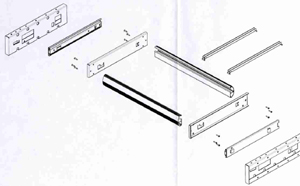

KIT PARTS OF KIT-TEL 2000 :

• FULL KIT of parts in steel and aluminium(1 kit for 1 filing frame of 250 mm to 1160 mm).
• 1 pair of mounting parts for right & left.
• 1 pair of ball-bearing runners for right & left.
• pair of frame parts for right & left cross profiles for hanging folders mounting screws.
• 2 anti-tilt cleats.
• mounting instructions and index labels.

Packaging : Cardboard box.

-- KT840 track :

• Rear and Front TRACKS in satin finish anodised aluminium to hold hanging folders for standard or listing drawers.
• Track of 4 lm in satin finish anodised aluminium with screw channels easy to cut.
• anti-unhooking device for hanging folders.
• Easy to read indexing.

NB:

   When calculating the length of the KT840 track,

remember to include the width of the KIT-TEL 2000

parts of 80 mm per pair.

Packaging of KT840 track :

   Sections in cardboard box or bars of 4.00 LM in sheaths.

-- MOUNTING OPTIONS :

     screwed under wooden shelves or on vertical sides

of wooden cabinets with a minimum inside depth of

390 mm and height of 305 mm.
